The original propshaft from the BW35 auto was modified by changing the output sleeve yoke to a type 9 version.
It was considered at the same time to lengthen the propshaft by 1" - but the company I used ( autoprop-uk ) had recently had some items lost in a fire and couldn't do the balancing. So we just changed then ends and spiders.
I decided to wait a while to determine if all was well before going to adjust the propshaft length.
It later occurred to me that a spacer on the axle would be a solution. I wasn't sure if it would be "safe" until I noted a few "propshaft spacers" for land rovers and Atlas axles available on eBay.

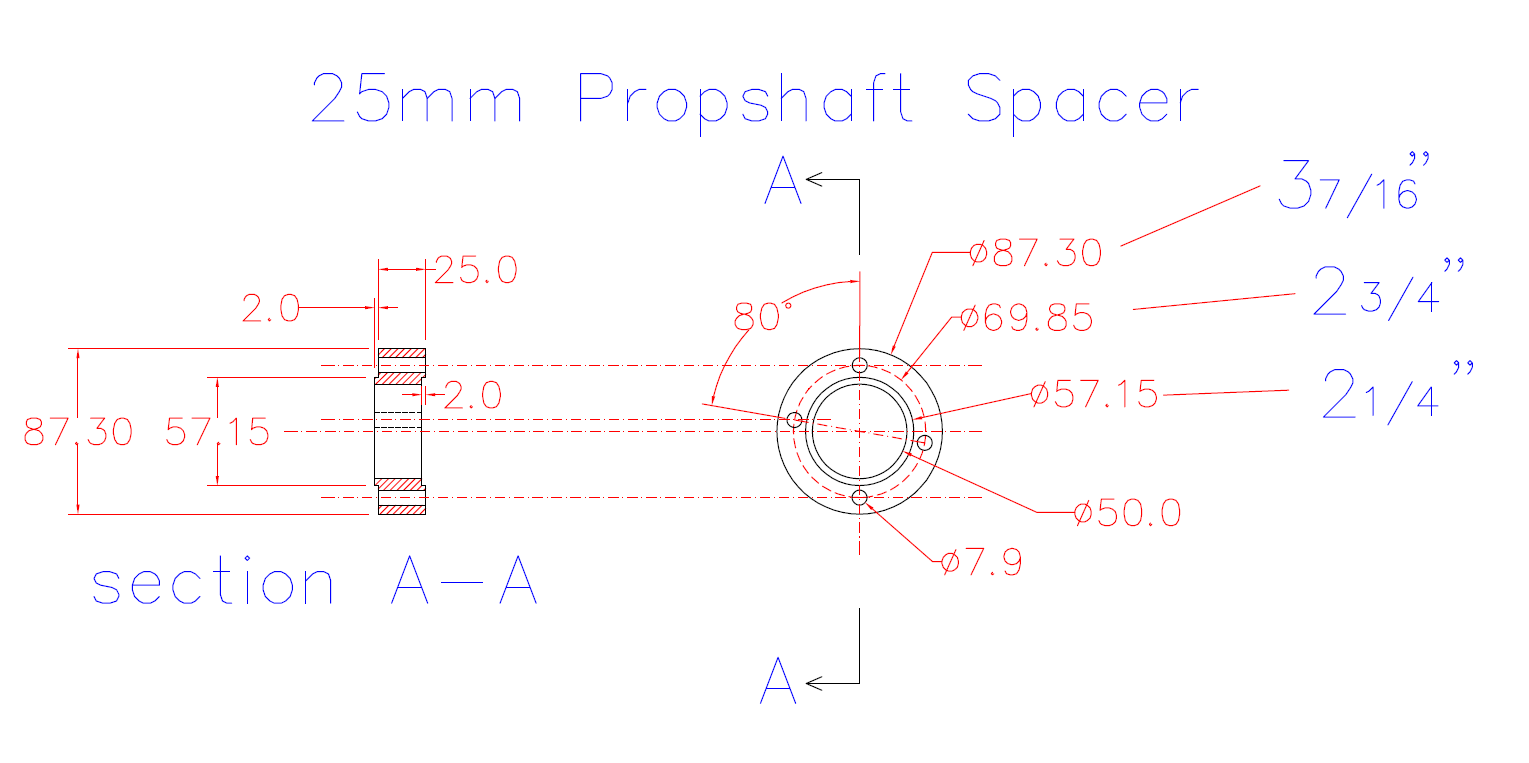

So here is the drawing for the Sunbeam.
Lofty volunteered to make it.
A week later and here it is - and it fits! (amazed my measurements were accurate but lofty made compensations for my lack of tolerances )
Perfect fit on the propshaft, slight interference fit on the Diff flange as I made the measurements the same for both sides. M8x50 class 8.8 were used as the 5/16" x 1-3/4" UNF grade S were just a little too short to fully fit the nylocs.
A test run proved it hasn't added any balance issues and I'm happier the propshaft fits further onto the gearbox.
It was considered at the same time to lengthen the propshaft by 1" - but the company I used ( autoprop-uk ) had recently had some items lost in a fire and couldn't do the balancing. So we just changed then ends and spiders.
I decided to wait a while to determine if all was well before going to adjust the propshaft length.
It later occurred to me that a spacer on the axle would be a solution. I wasn't sure if it would be "safe" until I noted a few "propshaft spacers" for land rovers and Atlas axles available on eBay.
Lofty volunteered to make it.
A week later and here it is - and it fits! (amazed my measurements were accurate but lofty made compensations for my lack of tolerances )
Perfect fit on the propshaft, slight interference fit on the Diff flange as I made the measurements the same for both sides. M8x50 class 8.8 were used as the 5/16" x 1-3/4" UNF grade S were just a little too short to fully fit the nylocs.
A test run proved it hasn't added any balance issues and I'm happier the propshaft fits further onto the gearbox.
